5 MHz–6 GHz RF Over Fiber Links

SANLAND provides 5 MHz–6 GHz RF over fiber links for wideband RF transmission over single-mode fiber, with high-gain, configurable and Ethernet-controlled options for different system requirements.

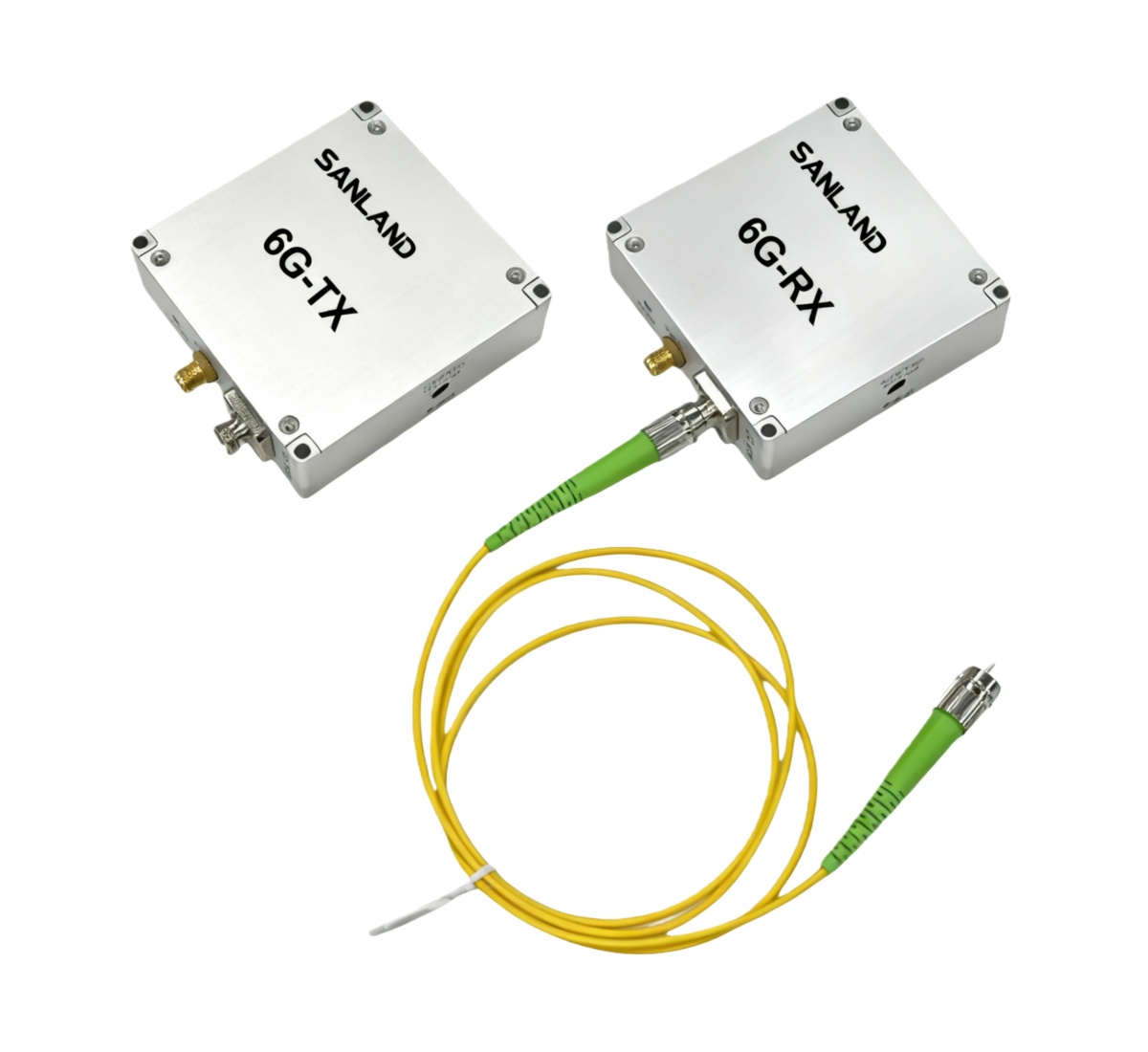

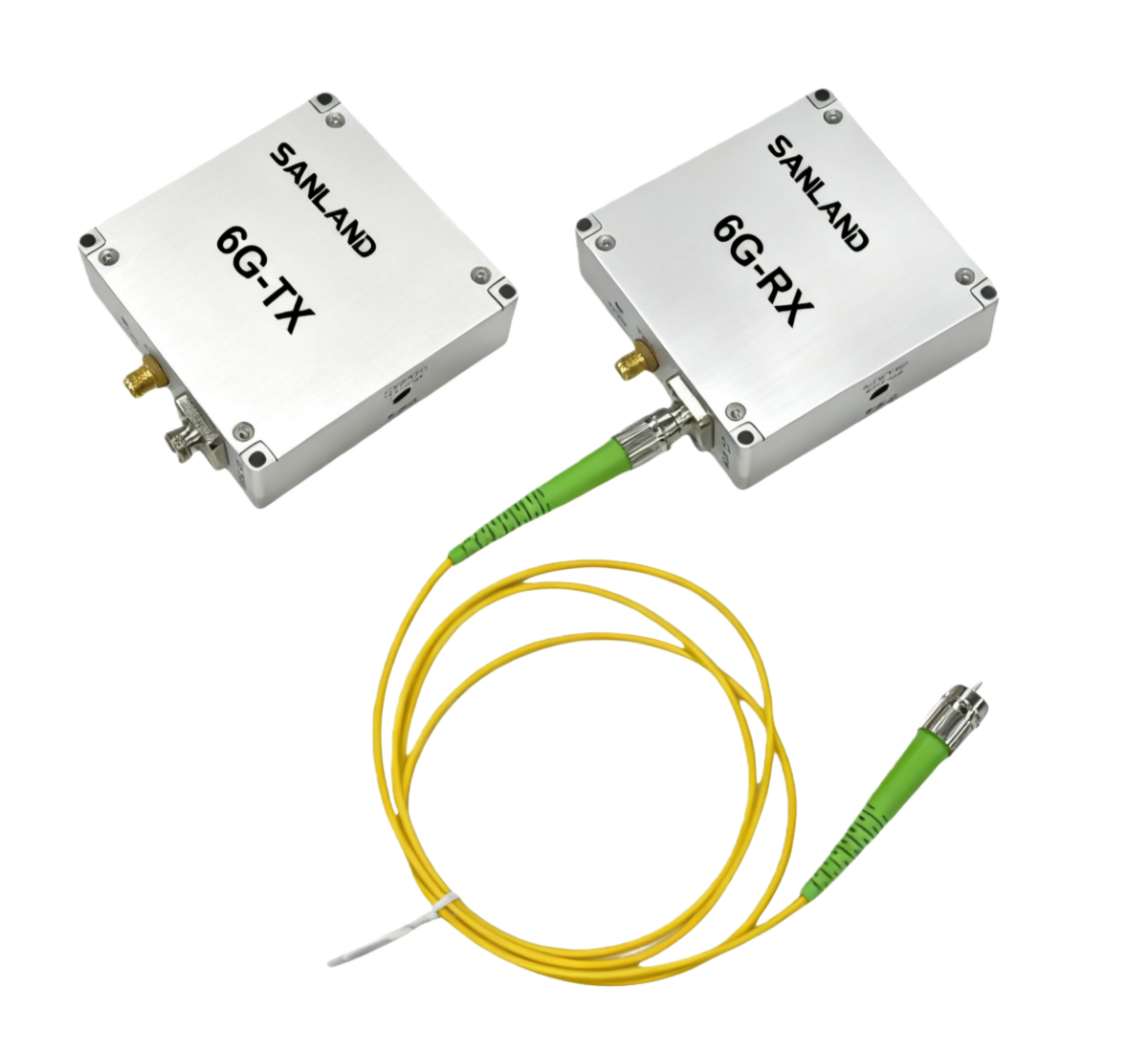

High-Gain Analog RFoF
A fixed-gain analog RFoF link for systems requiring straightforward installation and consistent link performance.

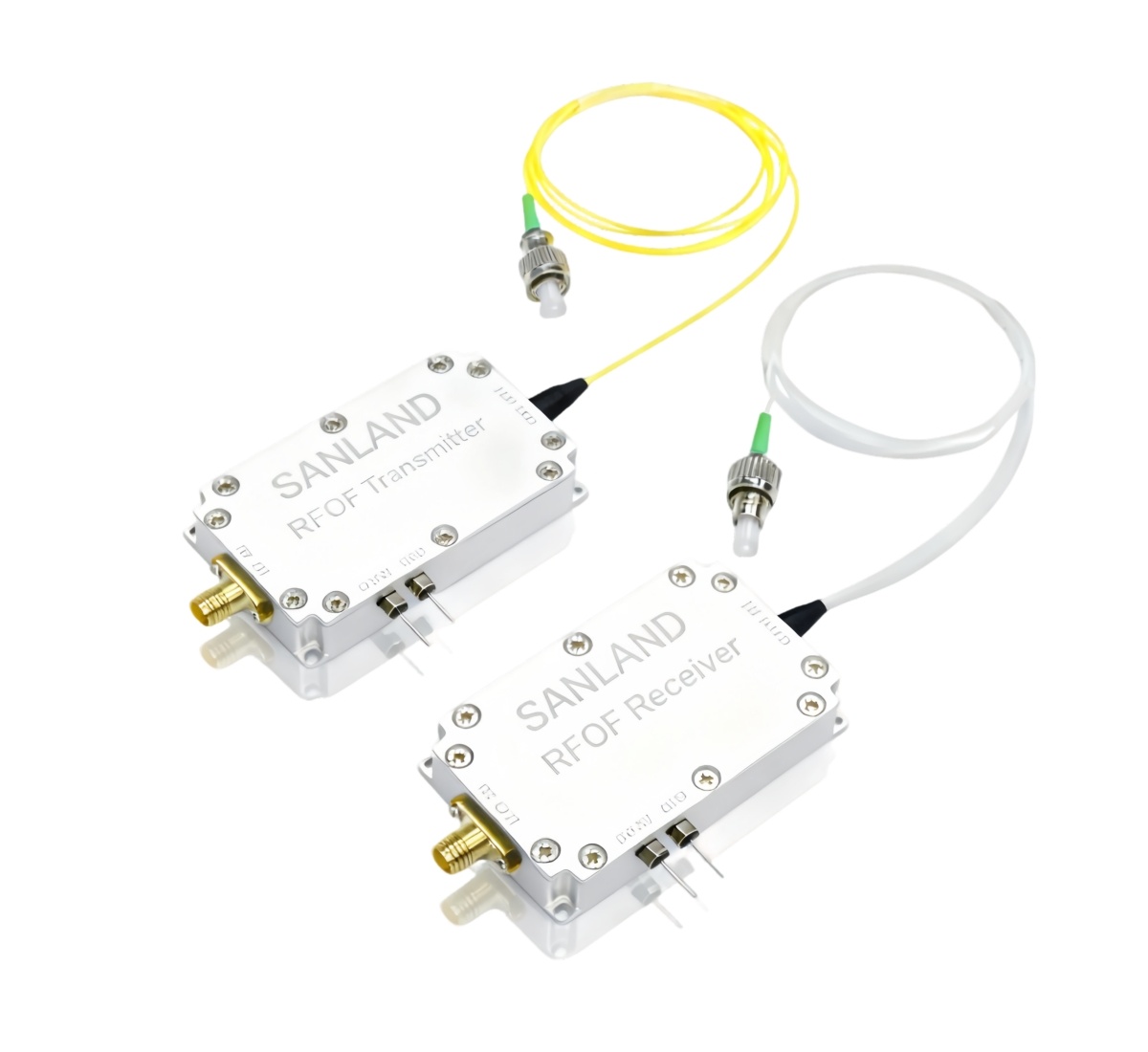

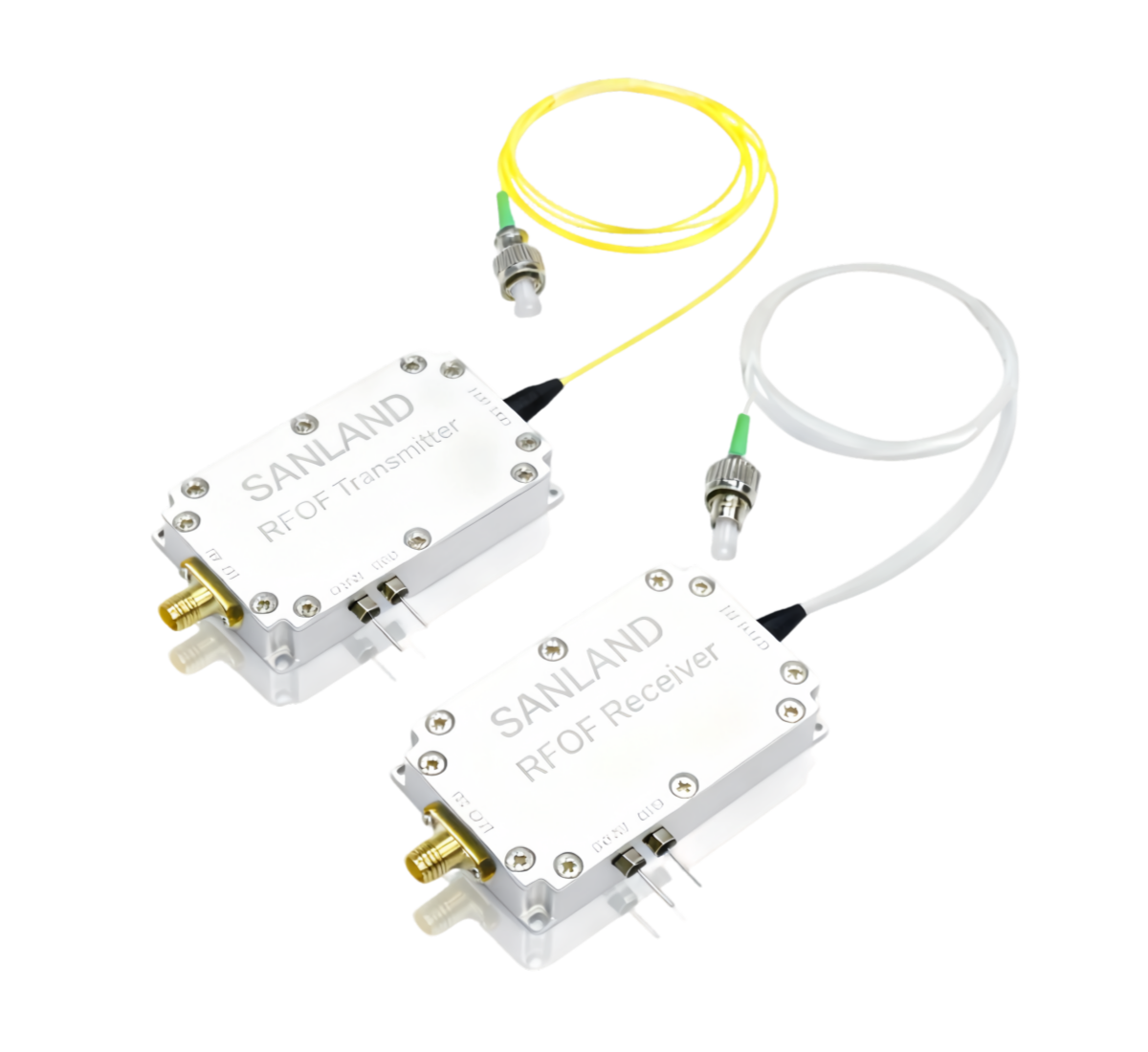

Configurable Analog/Digital RFoF
A flexible RFoF link for analog and digitally modulated RF signals, with wavelength, WDM and module configuration options.

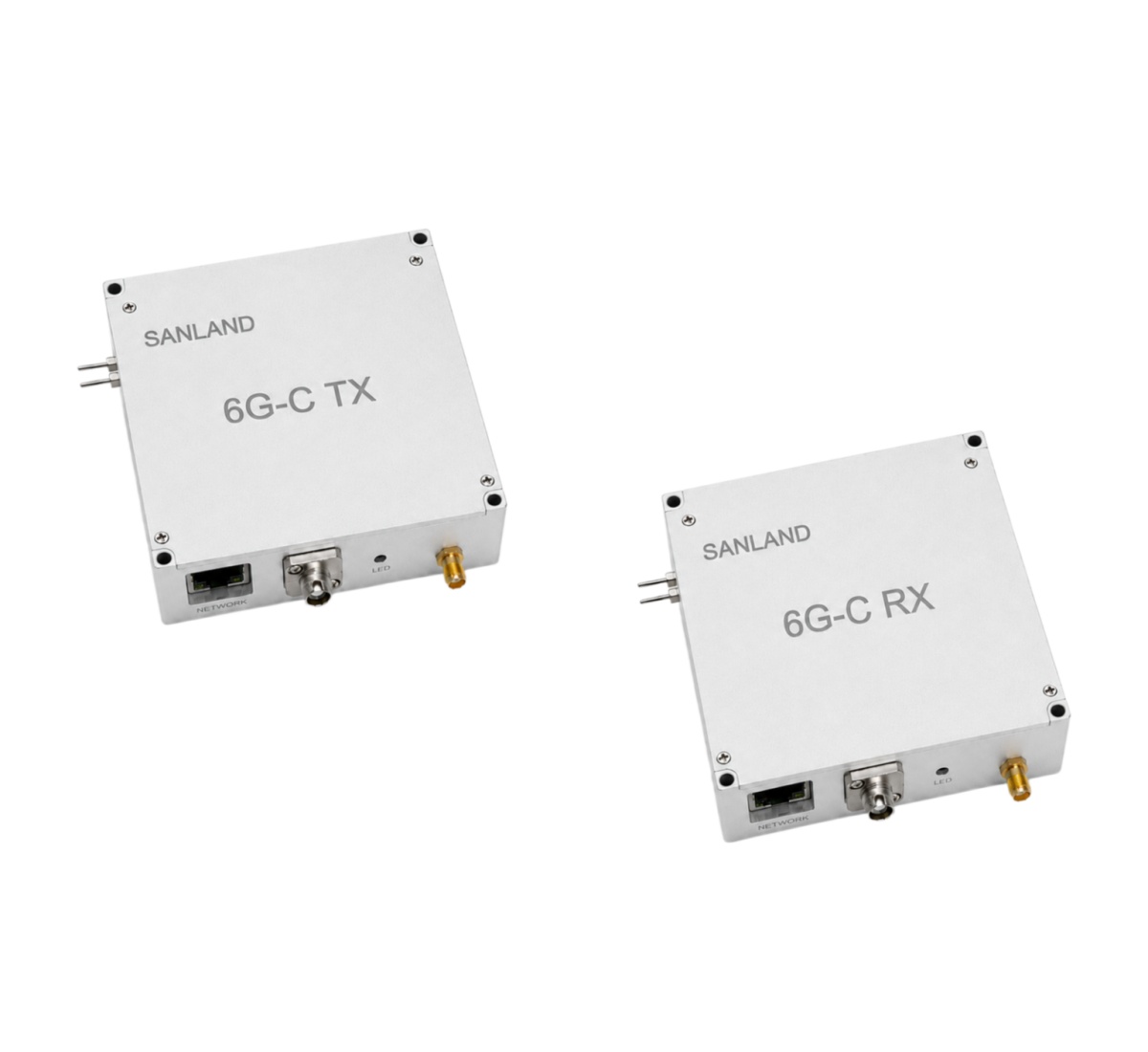

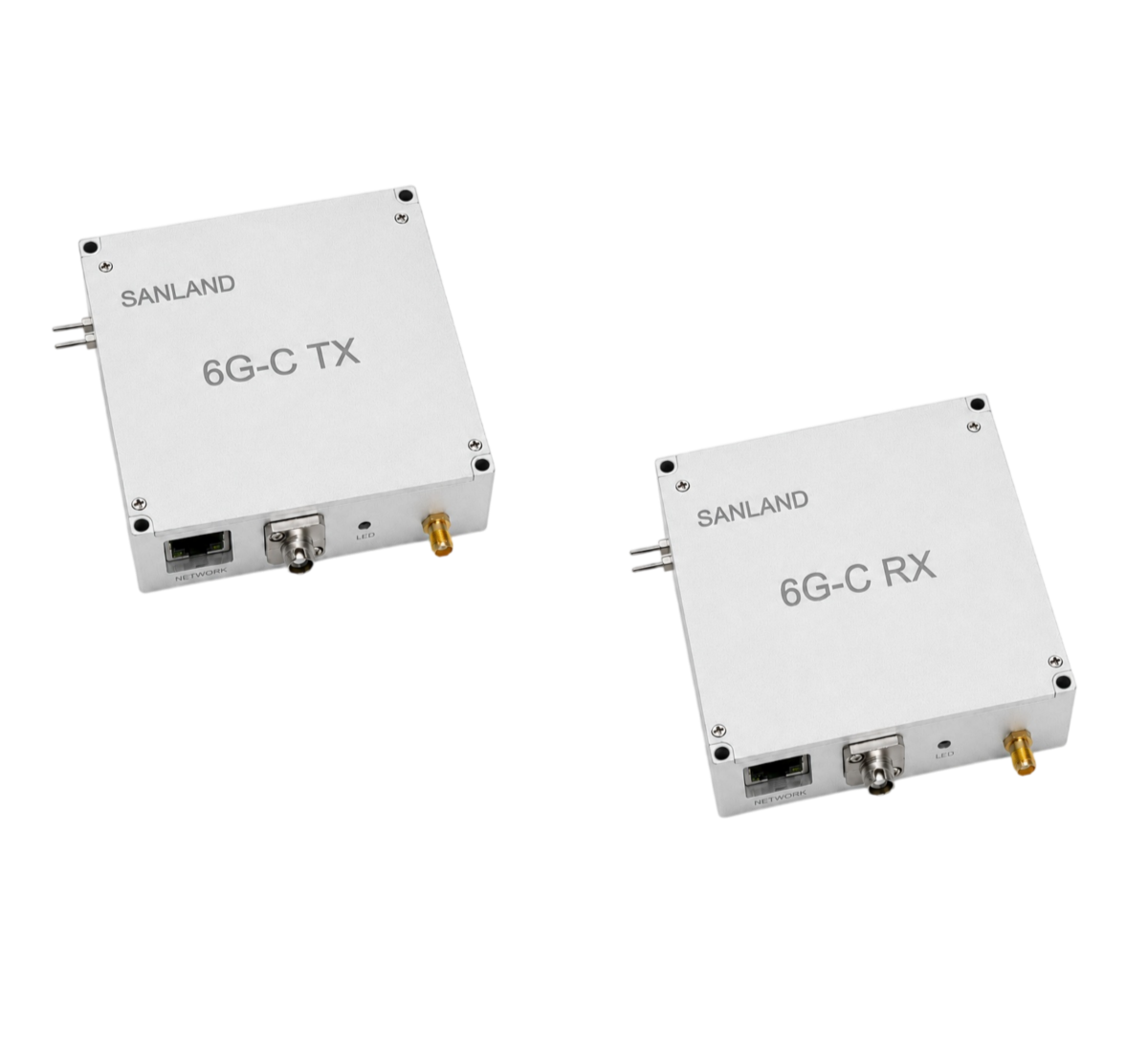

Remote-Controlled RFoF
An Ethernet-controlled analog RFoF link for remote adjustment and real-time monitoring at distributed or hard-to-access RF sites.

Parameter	High-Gain Analog RFoF	Configurable Analog/Digital RFoF	Remote-Controlled RFoF-C
Frequency Range	5 MHz–6 GHz	5 MHz–6 GHz	5 MHz–6 GHz
Signal Type	Analog RF	Analog and digitally modulated RF	Analog RF
Primary Positioning	Fixed high-gain link	Flexible RF/optical configuration	Remote-controlled link
Nominal Link Gain	20 dB	Configuration-dependent	6 dB / 36 dB
TX Attenuation Control	—	—	0–31 dB, 1 dB steps
LNA Control	—	—	Software-controlled ON/OFF
Optical Wavelength	1310 or 1550 nm	1310 or 1550 nm	1550 nm typical
WDM Configuration	—	Available	—
Remote Interface	None required	None required	RJ45 Ethernet
Remote Monitoring	—	—	RF level and temperature
Best For	Plug-and-play analog links	Integration and WDM requirements	Remote and unattended RF sites
