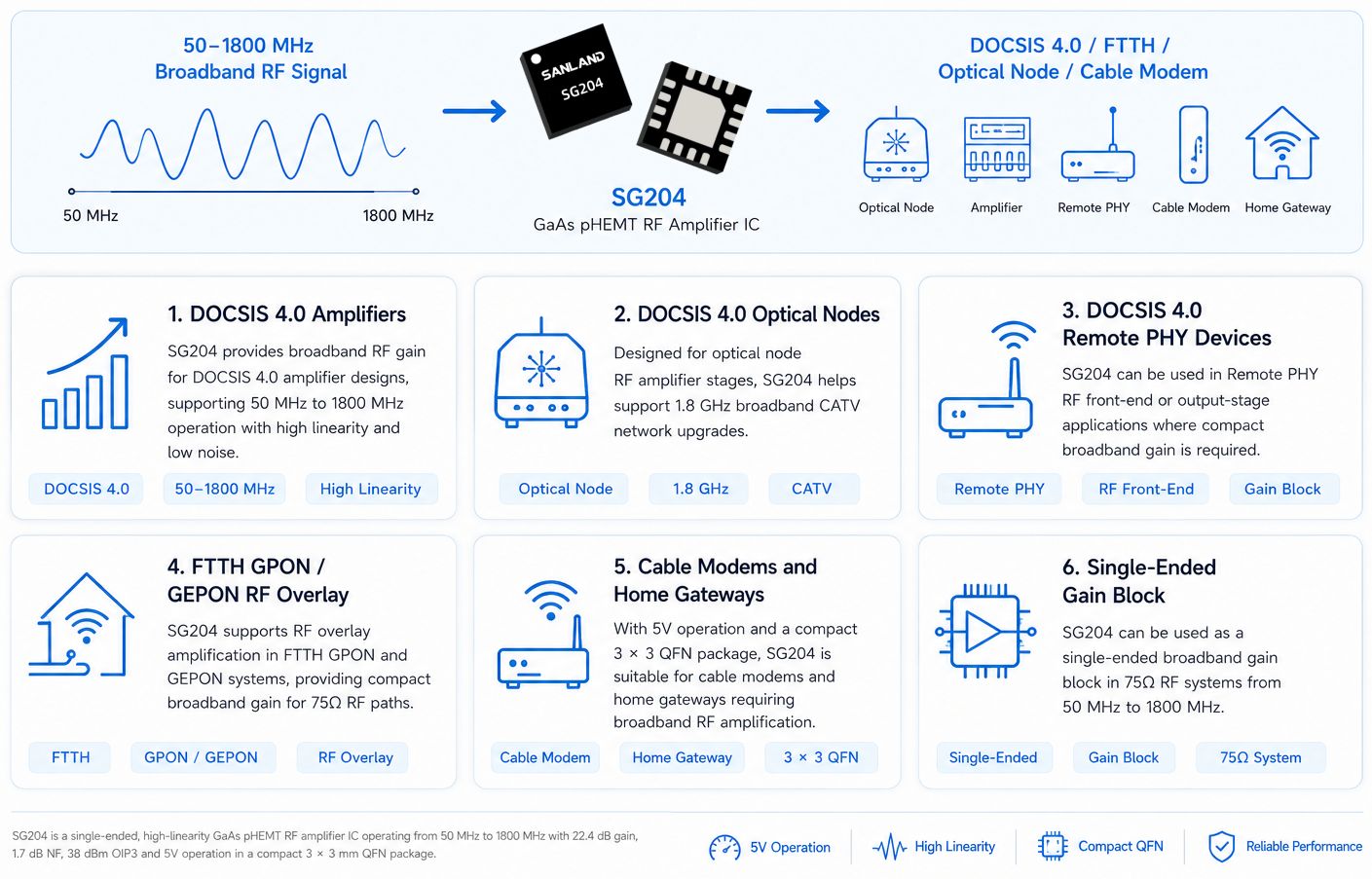

Sanland’s SG204 is a GaAs pHEMT single ended MMIC RF amplifier IC featuring 22dB of gain and low noise. This high linearity IC is designed to support DOCSIS 4.0 Amplifiers and Nodes, as well as Fiber to The Home (FTTH), Satellite, Terrestrial TV, Home Gateways, and Cable Modems applications from 50 to 1800MHz. The SG204 is powered by a single 5V supply and packaged in 3 x 3 QFN.
| Feature | Value |
|---|---|
| Frequency Range | 50–1800 MHz |
| Gain | 22.4 dB Typ. |
| Noise Figure | 1.7 dB Typ. |
| OIP3 | 38 dBm Typ. |
| OP1dB | 21 dBm Typ. |
| Supply Voltage | 5 V |
| Supply Current | 125 mA Typ. |
| Package | 3 × 3 mm 16-pin QFN |
| Technology | GaAs pHEMT MMIC |
